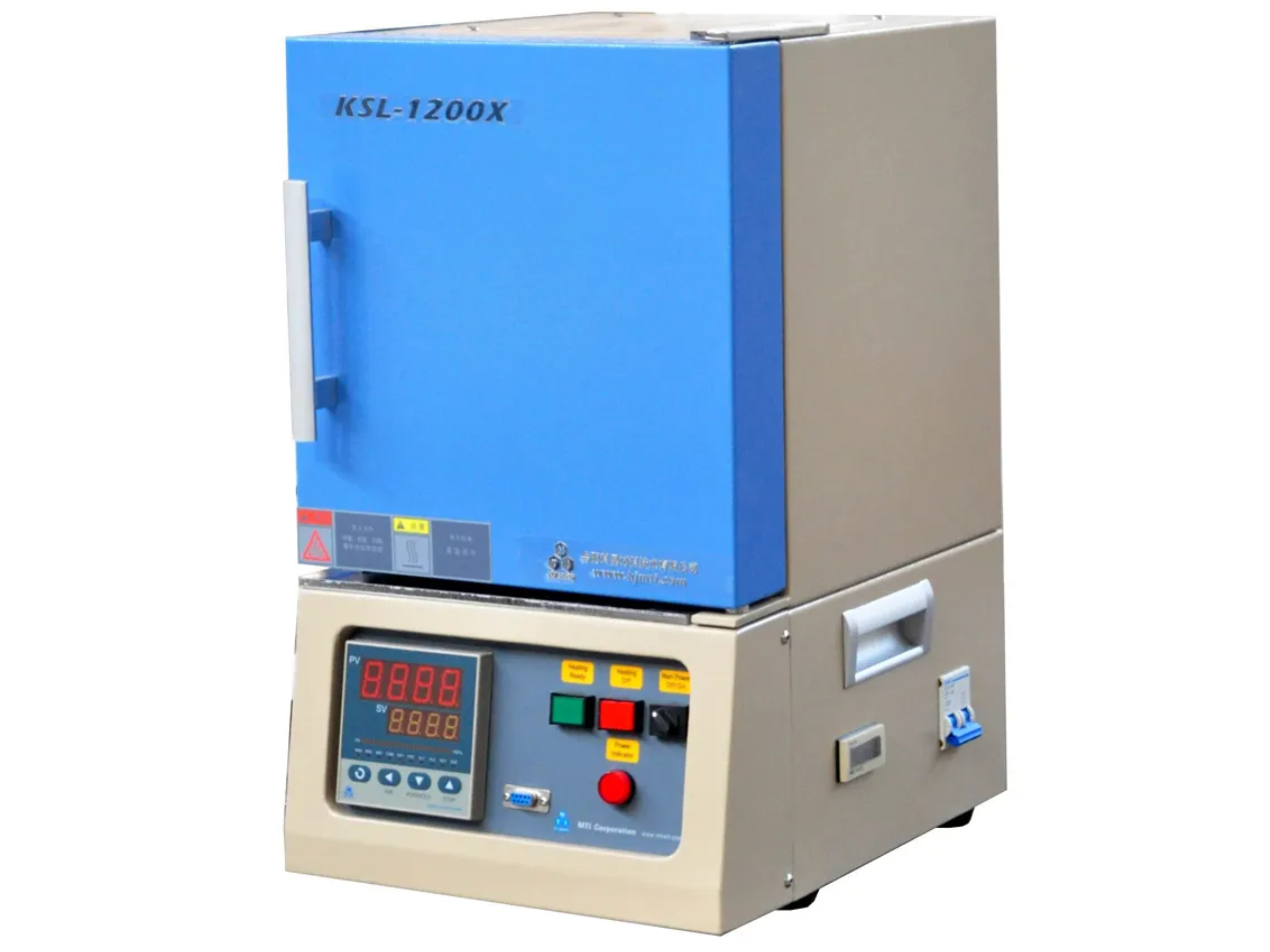

1. Chamber furnace KSL-1200X-J and KSL-1200X-M with resistance wire as the heating element, using double shell structure and 30-segment programmed temperature control, K-type thermocouple, furnace chamber using high-purity alumina fiber material, the highest temperature can reach 1200 degrees, continuous working temperature of 1100 degrees, temperature control accuracy of ± 1 degree, the furnace has the advantages of uniform temperature field, low surface temperature, fast temperature rise and fall, energy saving, etc., is a suitable product for universities, research institutes, industrial and mining enterprises to do high-temperature sintering, metal annealing, quality testing.
chamber furnace KSL-1700X-A1 is a high temperature chamber furnace, with silicon molybdenum rod as the heating element, double shell structure and PID programmed temperature control, B-type thermocouple, furnace chamber using high purity alumina fiber material, the highest temperature can reach 1700 degrees, can work continuously at 1600 degrees, temperature control accuracy ± 1 degree, the furnace has the advantages of uniform temperature field, low surface temperature, energy saving, etc., is a suitable product for universities, research institutes, industrial and mining enterprises to do high temperature sintering, metal annealing, quality testing.
Characteristics:
￭The furnace chamber material is made of high purity alumina fiber, which can reduce energy loss to a large extent
￭The furnace chamber is coated with high temperature alumina imported from the USA to improve heating efficiency and service life
￭Built-in air inlet and exhaust ports in the furnace chamber to remove undesirable contaminants and moisture, extending the service life of the heating elements and the furnace chamber Overheating and broken coupling protection with door opening and power-off function
￭Heating on three sides in the chamber for fast heating rates and uniform temperature fields
2. The GSL-1100X-S is a CE approved small bore tube furnace (1 to 2" diameter) designed for the preparation of small samples up to 1100C. It comes standard with a stainless steel sealing flange and quartz tube, and is ready for immediate use by the customer. 30-segment programmable precision temperature control allows the temperature to be programmed up or down according to the customer's needs. Temperature control accuracy ±1°C. The furnace can be positioned vertically or horizontally to suit different applications such as VSL, CVD, quenching tests etc.
Characteristics:
￭Includes a YD518P temperature controller; PID automatic temperature control system
￭Intelligent 30-segment programmable control
￭Built-in overheat protection and thermocouple fault alarm; temperature control accuracy: ±1°C;
￭Black Dog DB9 Pc communication port; ET certified;
￭Optional PC temperature control software (for YD518P series controllers) for temperature profile control and data export;
￭Optional Eurofins control instrument for temperature control accuracy up to ±0.1°C
